Product Description:

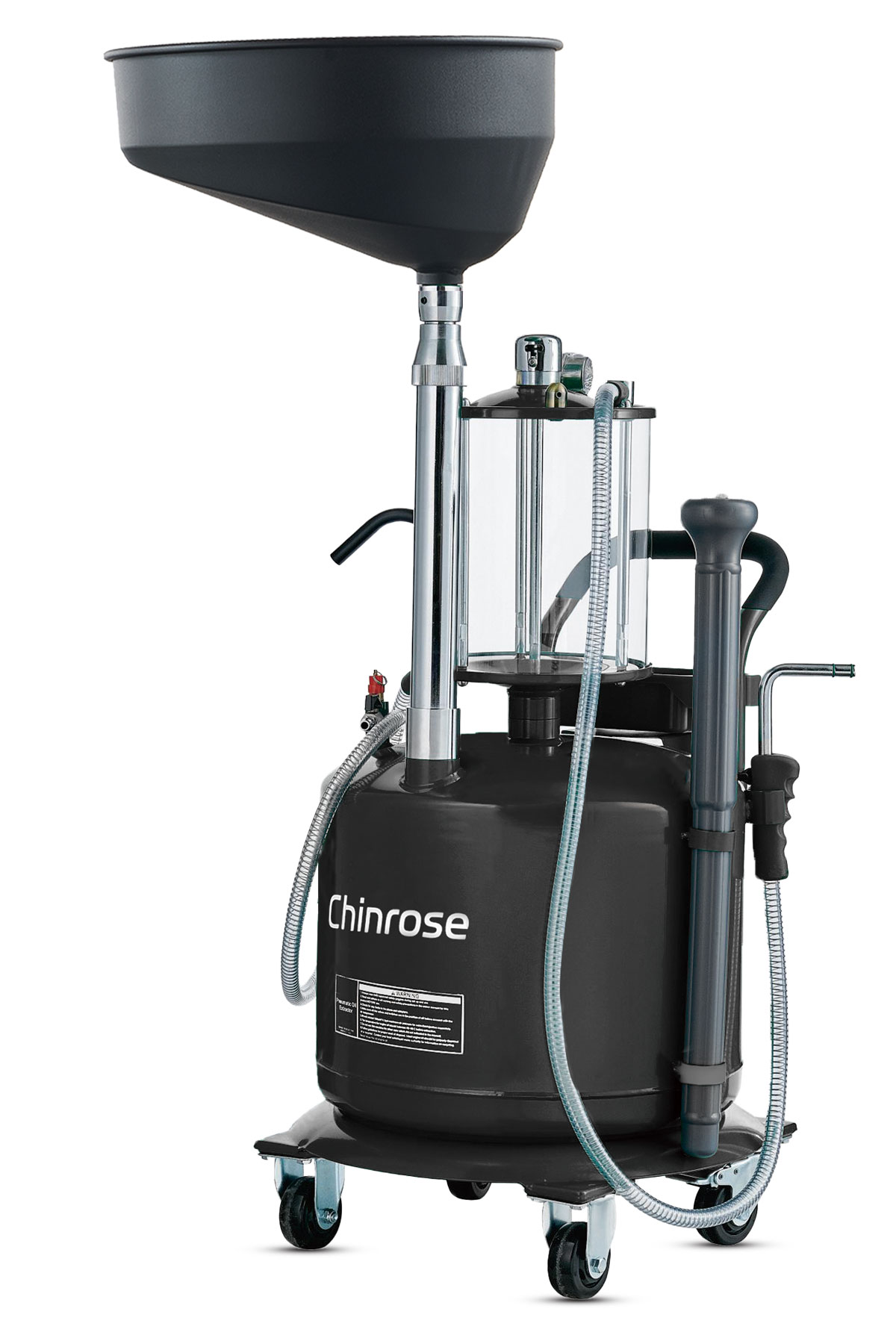

This Oil drainer & Extractor are portable waste engine/transmission oil draining unit designed for use under vehicle lift.
Combines oil suction and gravity collection units, with 10L Tempered glass measuring cup. Units with a graduated measuring cup that can be used as a vacuum reservoir and allows an immediate inspection of the extracted waste oil. Discharge through a 1.5m discharge hose pressurizing the unit. Includes safety valve to avoid over pressurization.
Technical Specification：
Oil tank volume: 50L
Measuring cup volume: 10L
Vacuum degree: <0.09Mpa
Oil discharge speed: 3.5L/Min
Oil sucking pipe length: 1.55m
Oil drain pipe length: 1.55m
Oil suction wands:1pc*5mm,2pcs*6mm,2pcs*8mm
Measuring cup Dimensions:260X260X460mm
Swivel Casters: 2pcs
Fixed wheels: 2pcs
Material thickness: 1.5mm
Height: 1.12~1.36m
Package Dimensions: 530X530X970mm
Net weight: 26.3kg/ctn
Gross weight: 29kg/ctn
Packing: 1pc/ctn
